Banana Extractor Machine & Parts
Explore our complete industrial banana pseudo-stem fiber extraction unit. Discover detailed schematics, key engineering features, and individual modular replacement components built for maximum efficiency and durability.

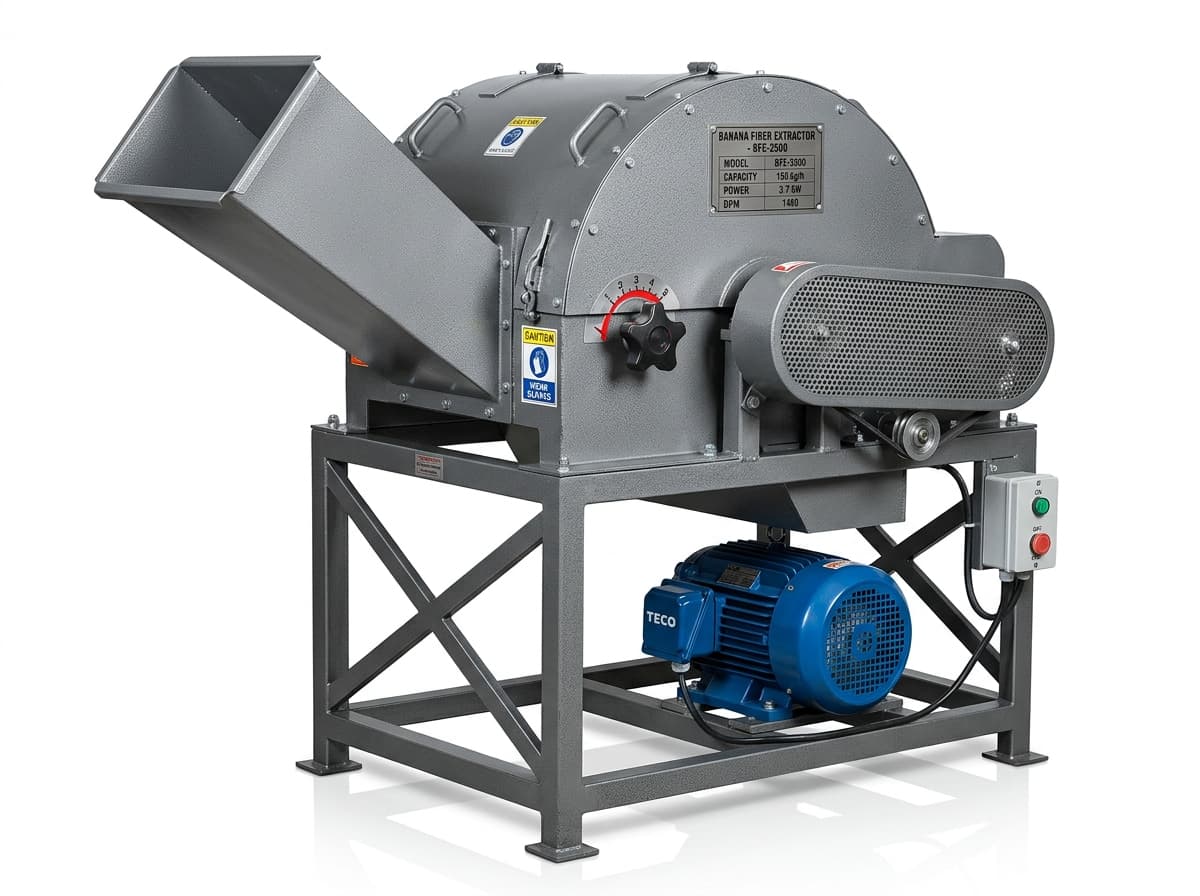

BANANA EXTRACTOR MACHINE
Click any numbered hotspot pin on the machine or select an item from the parts table to inspect individual components and their specifications.
Main Cover
Protective curved upper housing that encases the high-speed rotating extractor drum and blades.
PARTS LIST
Select a part below to view details
| NO. | PART NAME | COLOR | ACTION |
|---|---|---|---|
| 1 | Main CoverSafety & Housing | Gray | |
| 2 | Feed ChamberFeed Inlet | Gray | |
| 3 | Adjustment KnobCalibration | White | |
| 4 | Belt GuardSafety Guard | Gray | |
| 5 | Extractor Drum (Inside)Core Engine | Gray | |
| 6 | FrameChassis | Gray | |
| 7 | Motor (Inside)Electric Power | Blue | |
| 8 | Discharge OutletOutput Chute | Gray |
KEY FEATURES
Detailed Parts Catalog & Specifications
Examine high-resolution views, material specifications, and engineering functions for all 8 standard components of the banana extractor machine.

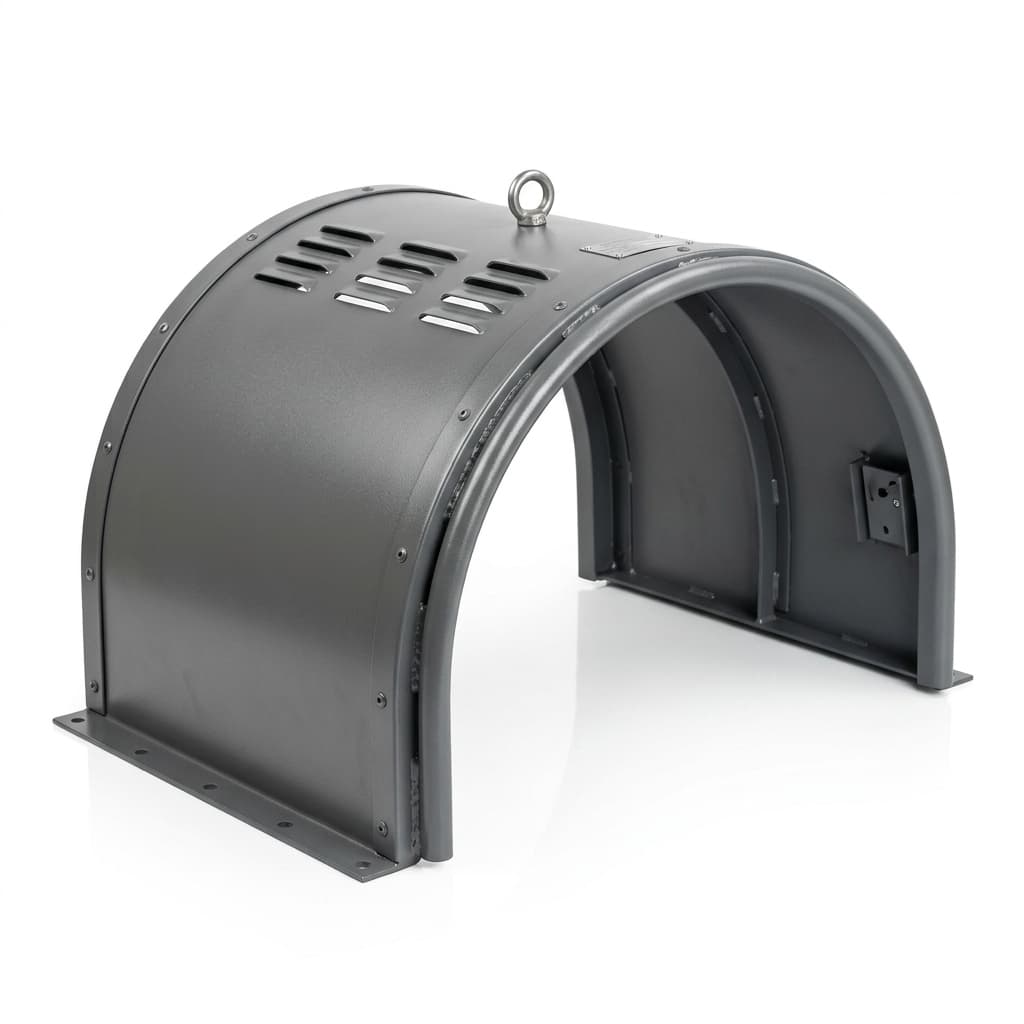

1. Main Cover
GrayProtective curved upper housing that encases the high-speed rotating extractor drum and blades.

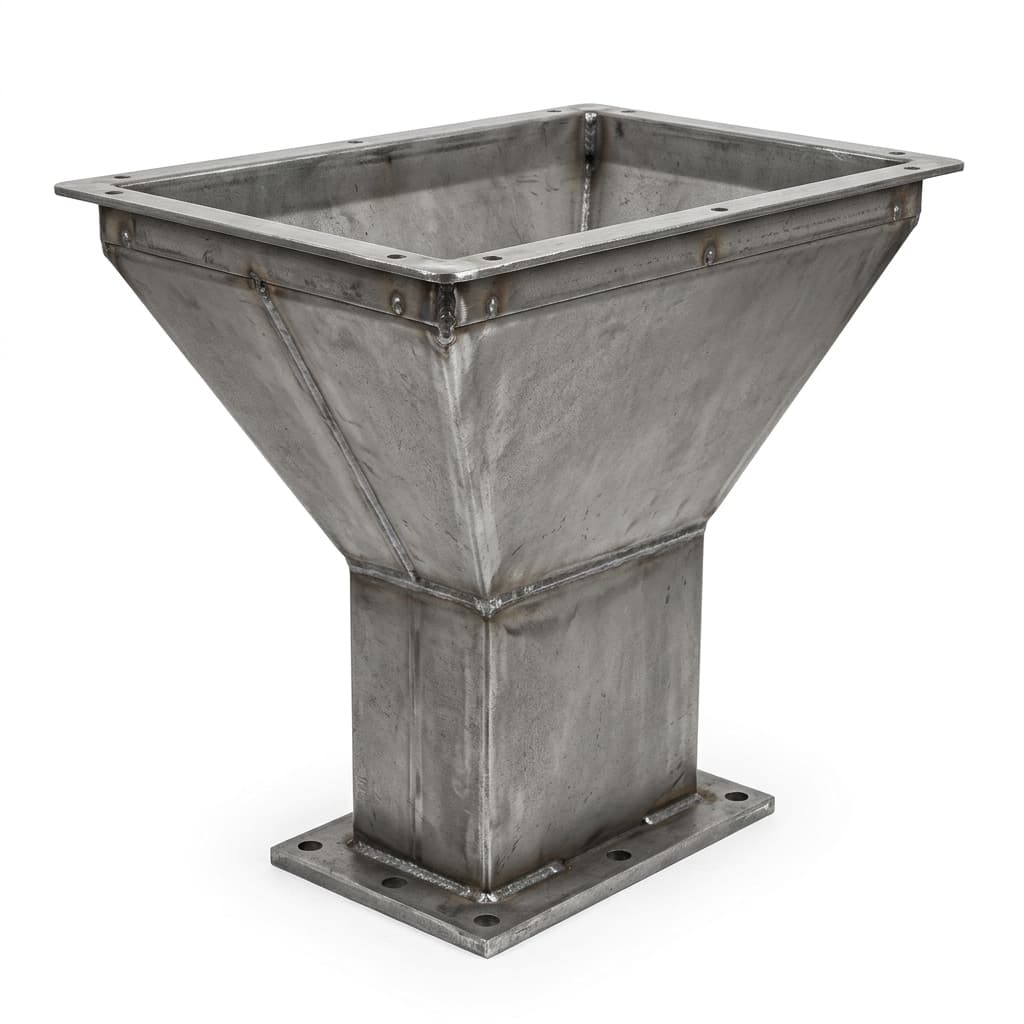

2. Feed Chamber
Gray
Precision-angled hopper chute guiding raw banana pseudo-stem leaves safely into the drum blades.

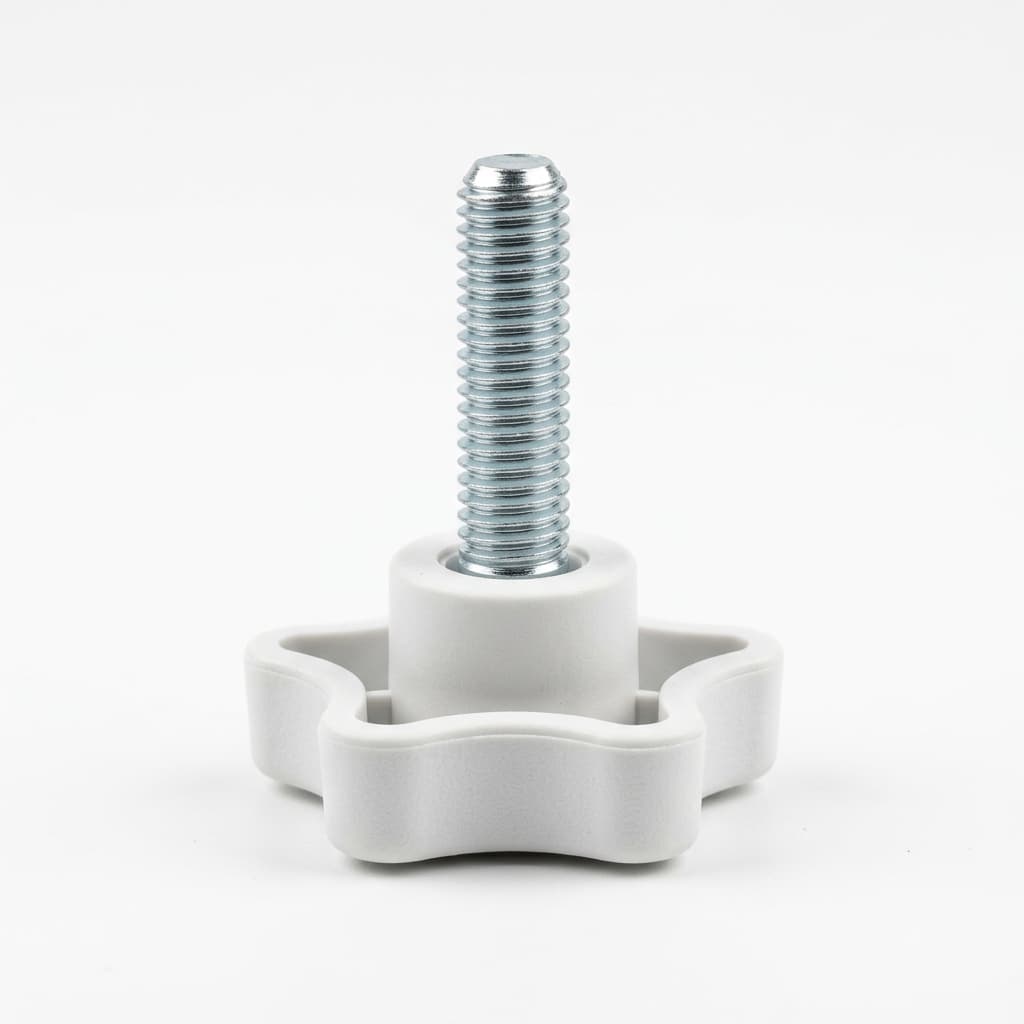

3. Adjustment Knob
White
Fine-pitch adjustment knob allowing precise calibration of blade clearance for different stem thicknesses.

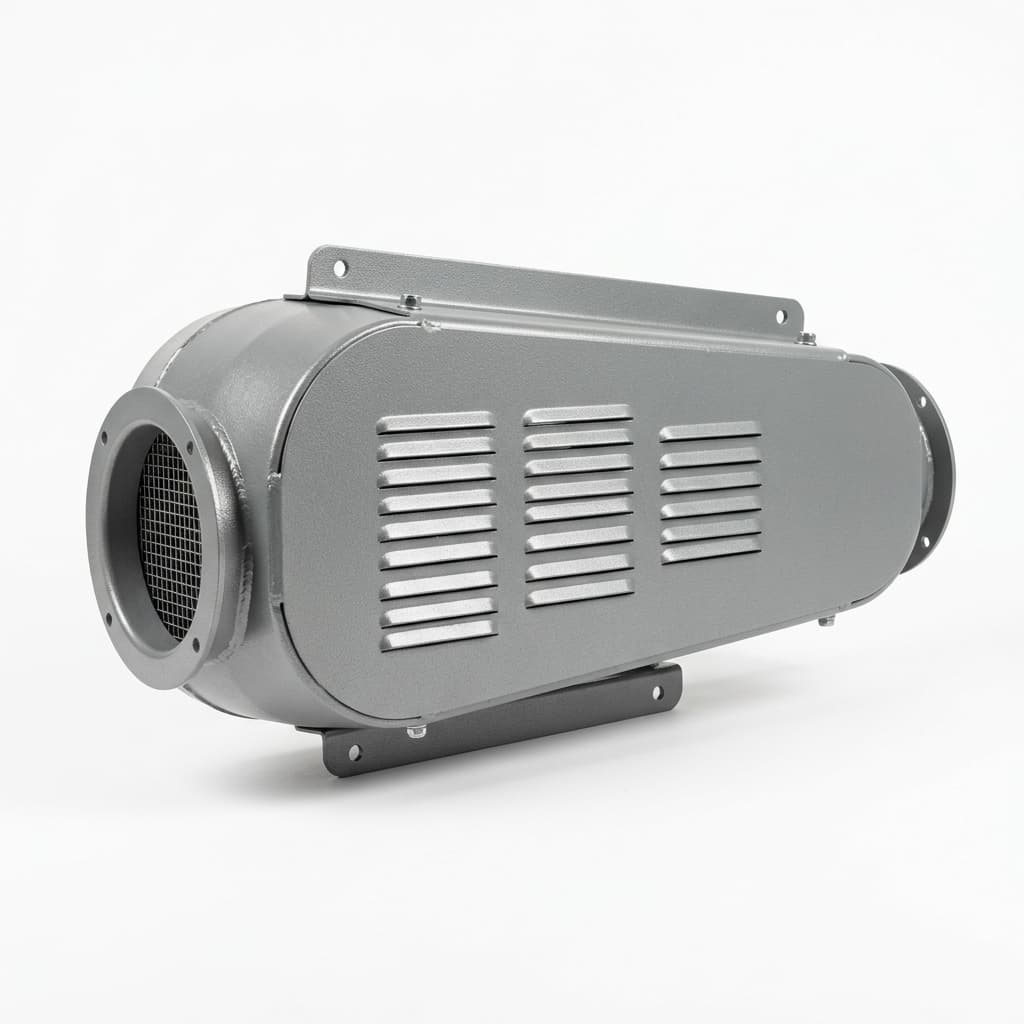

4. Belt Guard
Gray
Protective safety casing isolating the motor pulley, V-belt, and drum drive mechanism.

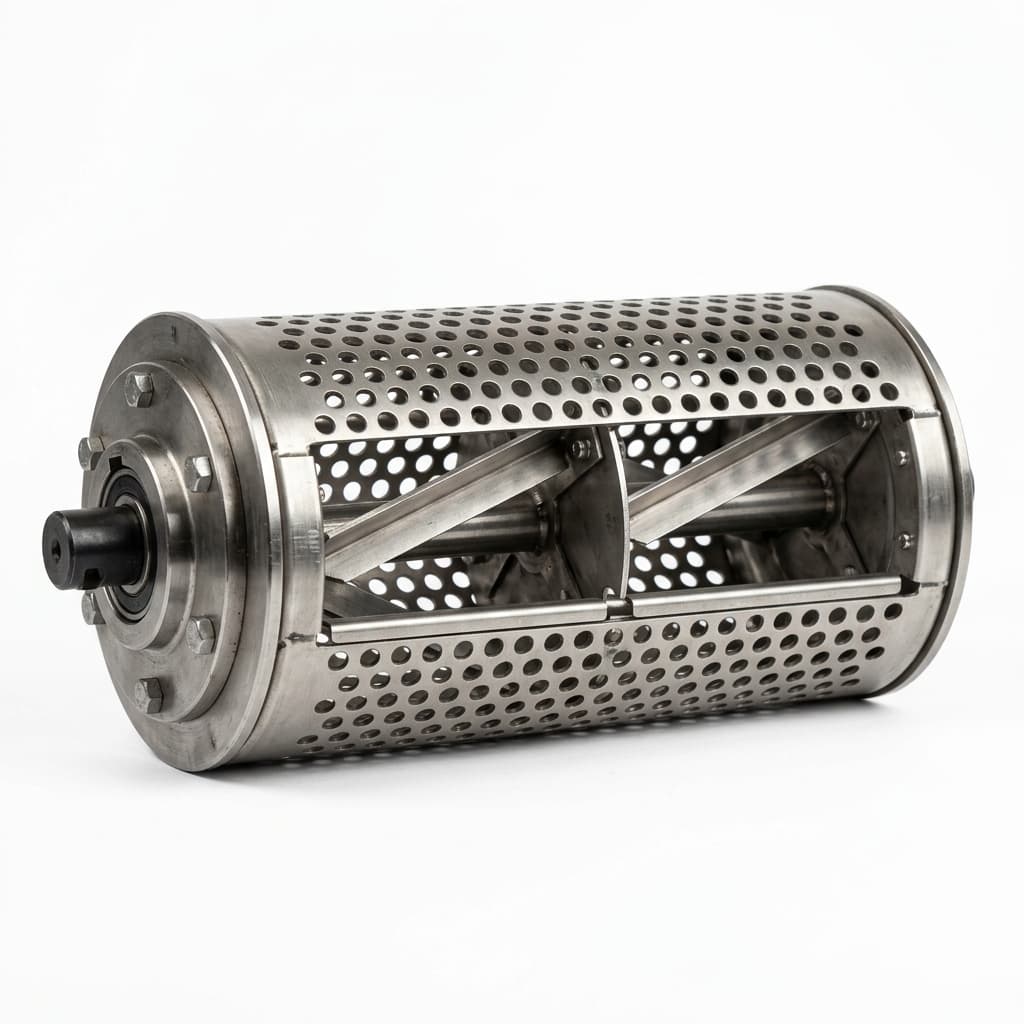

5. Extractor Drum (Inside)
Gray
The core extraction cylinder equipped with precision scraping blades that extract natural fibers smoothly.

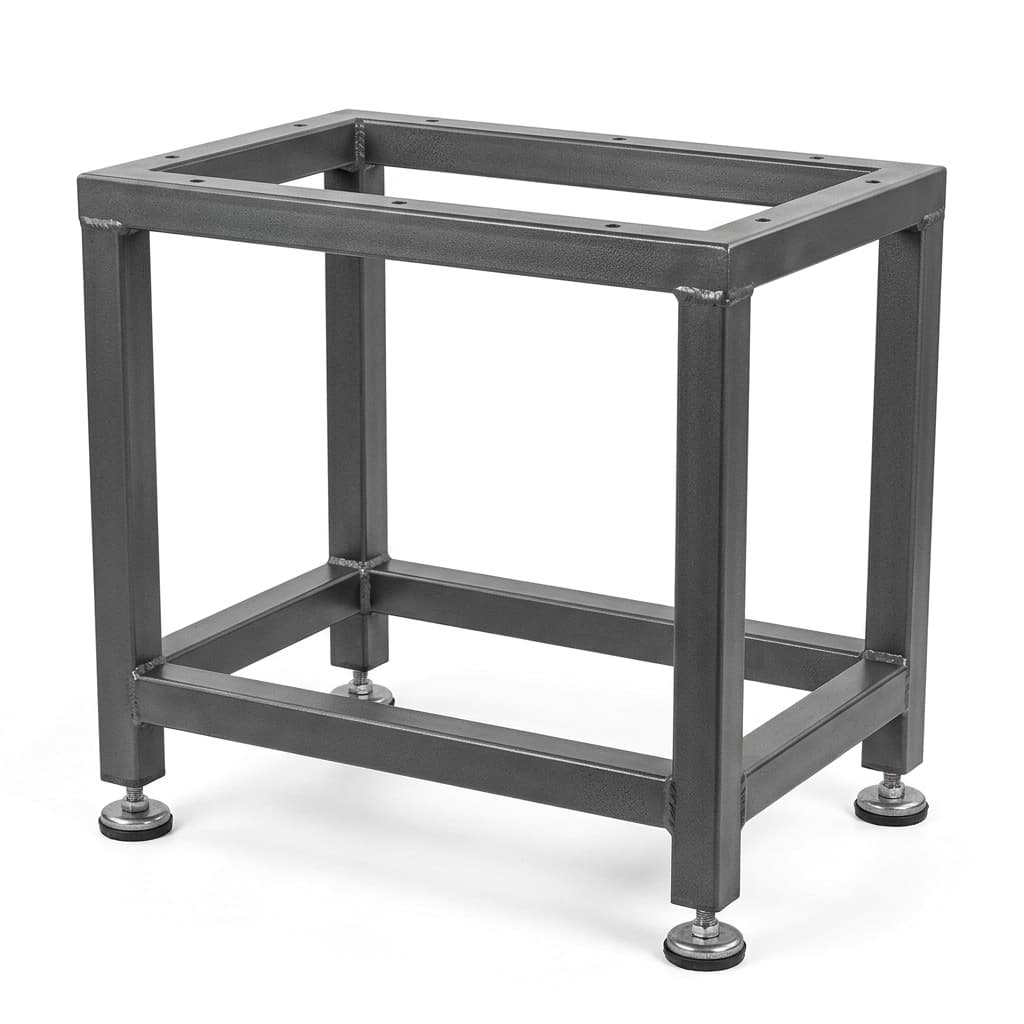

6. Frame
Gray
Heavy-duty structural framework providing maximum rigidity, vibration dampening, and stability.

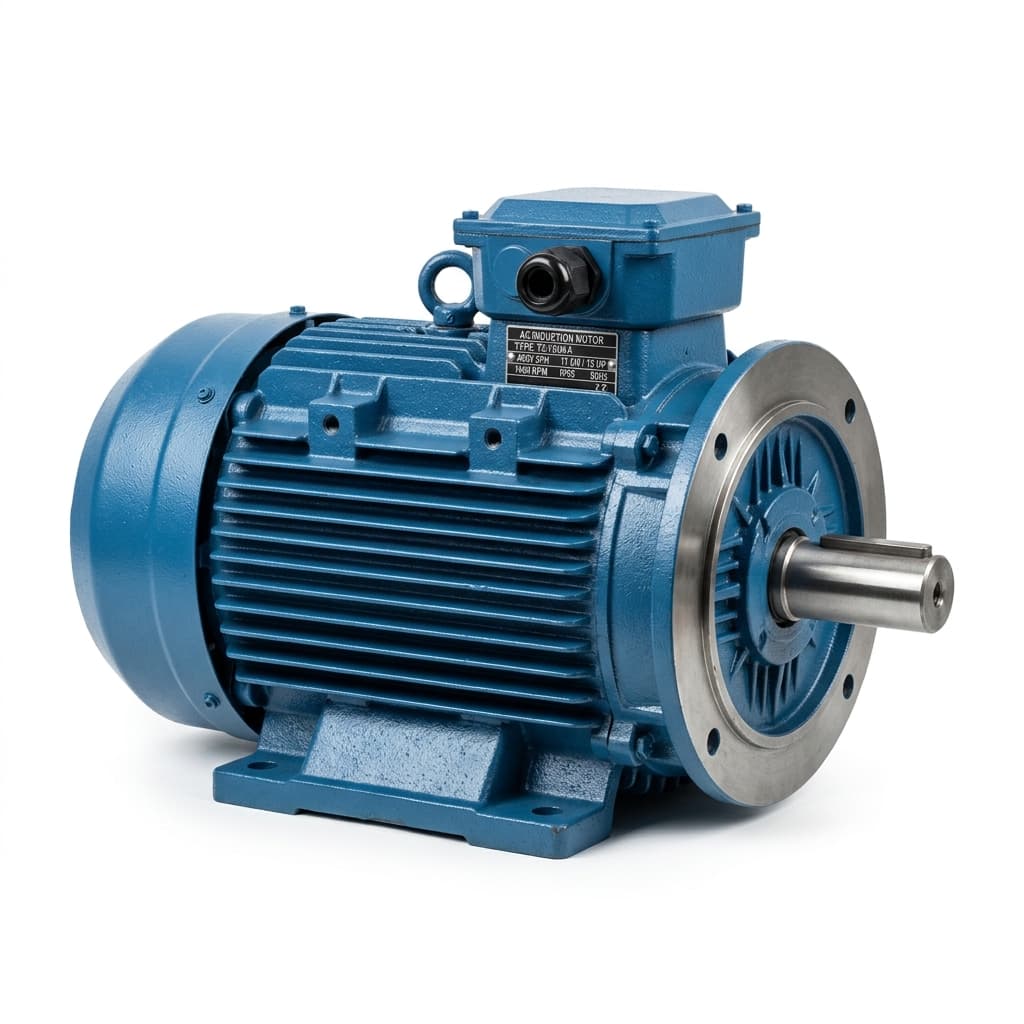

7. Motor (Inside)
Blue
High-torque industrial electric motor driving the extraction drum reliably through heavy stem loads.

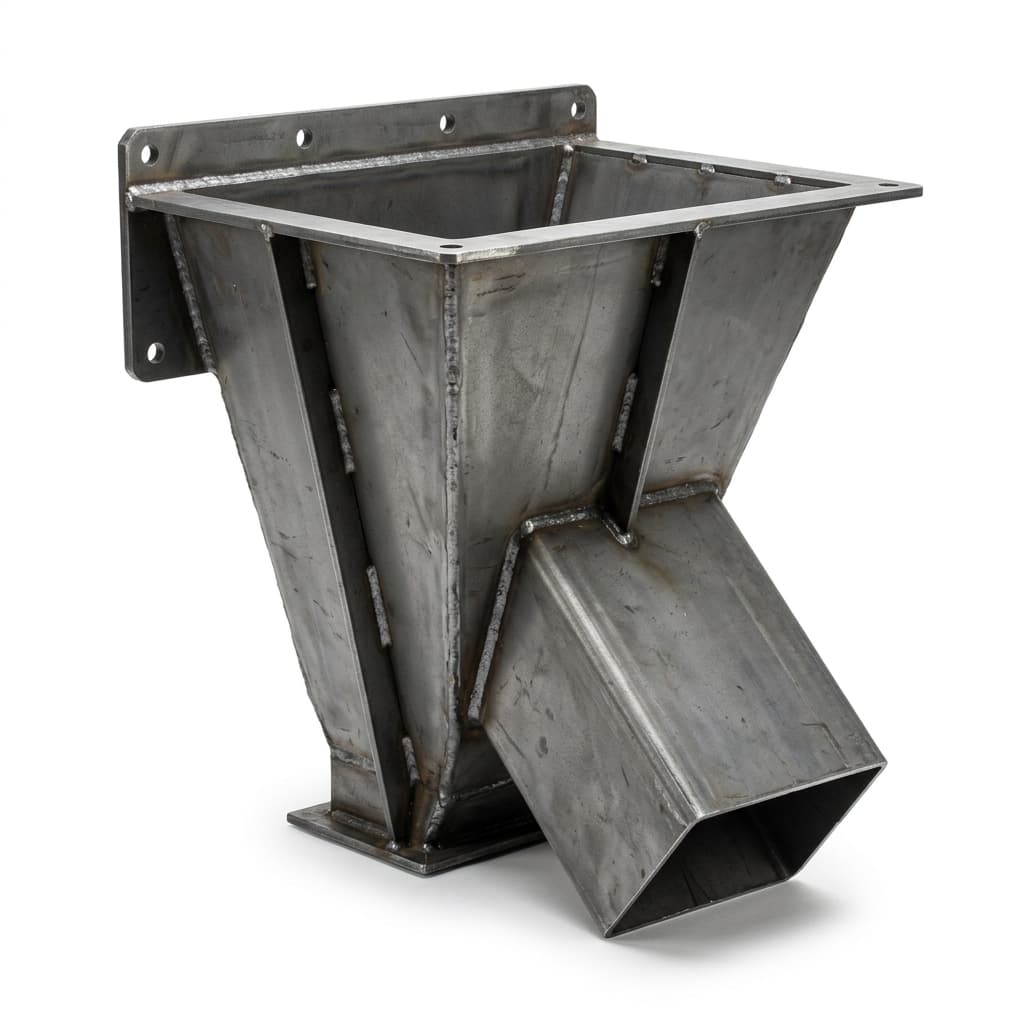

8. Discharge Outlet
Gray
Bottom discharge chute facilitating smooth ejection and easy collection of extracted fiber and pulp.
Technical Specifications & Operating Protocols
Complete engineering parameters and recommended preventive maintenance routines for maximum longevity and fiber extraction efficiency.
Machine Technical Parameters
Standard Industrial Model: BFE-3500 Pro
Maintenance & Safety Guide
Guidelines for uninterrupted long-term production
Safety Notice: Always disconnect the main electrical supply before opening the Main Cover (Part #1) or removing the Belt Guard (Part #4).
Order Complete Machines or Certified Spare Parts
Need customized machine configurations, blade replacements, or spare components shipped to your facility? Contact our engineering specialists today for fast quotes and technical guidance.
